Features of Piezoelectric Positioning Systems

Note / Additional Information:
Piezo Application Examples
are found in the Piezo Blog

Video Animations of
Different Piezo Motion Technologies

Advantages of Piezoelectric Mechanisms

Unlimited Resolution
Piezoelectric mechanisms convert electrical energy directly to mechanical energy. They make motion in the sub-nanometer range possible. There are no moving parts in contact with each other to limit resolution.

Fast Expansion
Piezo mechanisms react in a matter of microseconds. Acceleration rates of more than 10,000 g can be obtained.

High Force Generation
High-load piezo actuators capable of moving loads of several tons are available today. They can cover travel ranges of several 100 µm with resolutions in the sub-nanometer range (see examples like the P-056, in the "Piezo Actuators" section).

No Magnetic Fields
The piezoelectric effect is related to electric fields. Piezo actuators do not produce magnetic fields nor are they affected by them. Piezo devices are especially well suited for applications where magnetic fields cannot be tolerated.

Low Power Consumption
Static operation, even holding heavy loads for long periods, consumes virtually no power. Piezo actuators behave very much like an electrical capacitor. When at rest, no heat is generated.

No Wear and Tear
A piezo actuator has no moving parts like gears or bearings. Its displacement is based on solid state dynamics and shows no wear and tear. PI has conducted endurance tests on piezo actuators in which no measurable change in performance was observed after several billion cycles.

Vacuum and Clean Room Compatible
Piezoelectric actuators neither cause wear nor require lubricants. The new PICMA® actuators with ceramic insulation have no polymer coating and are thus ideal for UHV (ultra-high vacuum) applications.

Operation at Cryogenic Temperatures
The piezoelectric effect continues to operate even at temperatures close to 0 kelvin. PI offers specially prepared actuators for use at cryogenic temperatures.

Piezoelectric nanopositioning systems

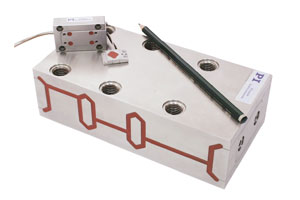

large (e.g. for precision machining)
medium (e.g. for interferometry)
small (e.g. for data storage medium testing)
Applications for Piezo Positioning Technology
Data Storage
  • MR head testing
  • Spin stands
  • Disk testing
  • Active vibration cancellation
  • Pole-tip recession test
Semiconductors, Microelectronics
  • Nano & Microlithography
  • Nanometrologie
  • Wafer and mask positioning
  • Critical-dimension-test
  • Inspection systems
  • Active vibration cancellation
Precision Mechanics
  • Fast tool servos
  • Non-circular grinding, drilling, turning
  • Active vibration cancellation
  • Structural deformation
  • Tool adjustment
  • Wear compensation
  • Needle-valve actuation
  • Micropumps
  • Linear drives
  • Knife edge control in extrusion tools
  • Micro engraving systems
  • Shock wave generation
Life Science, Medical Technology
  • Scanning microscopy
  • Patch clamp
  • Nanoliter pumps
  • Gene manipulation
  • Micromanipulation
  • Cell penetration
  • Microdispensers
Optics, Photonics, Nanometrologie
  • Scanning mirrors
  • Image stabilization, pixel multiplication
  • Scanning microscopy
  • Auto focus systems
  • Interferometry
  • Fiber optic alignment
  • Fiber optics switching
  • Adaptive and active optics
  • Laser tuning
  • Stimulation of vibrations

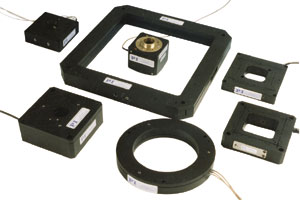

Selection of piezo nanopositioning stages.
to the top


A device that can produce force or motion (displacement).

Blocked Force:
The maximum force an actuator can generate if blocked by an infinitely rigid restraint.

A polycrystalline, inorganic material.

Closed-Loop Operation:
The displacement of the actuator is corrected by a servo-controller compensating for nonlinearity, hysteresis and creep. See also "Open-Loop Operation".

Displacement produced per unit force. The reciprocal of stiffness.

An unwanted change in the displacement over time.

Curie Temperature:
The temperature at which the crystalline structure changes from a piezoelectric (non-symmetrical) to a non-piezoelectric (symmetrical) form. At this temperature PZT ceramics looses the piezoelectric properties.

See "creep"

A region of electric dipoles with similar orientation.

Acronym for High-Voltage PZT (actuator).

Hysteresis in piezo actuators is based on crystalline polarization and molecular effects and occurs when reversing driving direction. Hysteresis is not to be confused with backlash.

Acronym for low-voltage PZT (actuator).

Monolithic Multilayer Actuator:
An actuator manufactured in a fashion similar to multilayer ceramic capacitors. Ceramic and electrode material are cofired in one step. Layer thickness is typically on the order of 20 to 100 µm.

Open-Loop Operation:
The actuator is used without a position sensor. Displacement roughly corresponds to the drive voltage. Creep, nonlinearity and hysteresis remain uncompensated.

Parallel Kinematics:
Unlike in serial kinematics designs, all actuators act upon the same moving platform. Advantages: Minimized inertia, no moving cables, lower center of gravity, no cumulative guiding errors and more-compact construction.

Parallel Metrology:
Unlike in serial metrology designs, each sensor measures the position of the same moving platform in the respective degree of freedom. This keeps the off-axis runout of all actuators inside the servo-control loop and allows it to be corrected automatically (active guidance).

Piezoelectric Materials:
Materials that change their dimensions when a voltage is applied and produce a charge when pressure is applied.

Poling / Polarization:
The procedure by which the bulk material is made to take on piezoelectric properties, i.e. the electrical alignment of the unit cells in a piezoelectric material.

Piezo Mechanism:
A device that has a piezoelectric ceramic at its core. It can comprise additional mechanical elements such as motion amplifiers or flexure guiding systemms. Piezo mechanisms are used to produce force or motion with very high resolution and short response times.

Acronym for plumbum (lead) zirconate titanate. Polycrystalline ceramic material with piezoelectric properties. Often also used to refer to a piezo actuator or translator.

Serial Kinematics:
Unlike in parallel kinematics designs, each actuator acts upon a separate platform of its own. There is a clear relationship between actuators and axes. Advantages: Simpler to assemble; simpler control algorithm. Disadvantages: Poorer dynamic characteristics, integrated "Parallel Metrology" is not possible, cumulative guiding errors, lower accuracy.

Serial Metrology:
One sensor is assigned to each degree of freedom to be servo-controlled. Undesired off-axis motion (guiding error) from other axes in the direction of a given sensor, go unrecognized and uncorrected (see also "Parallel Metrology").

Spring constant (for piezoelectric materials, not linear).

Provisions to prevent deviation from the specified trajectory. Can be passive (e.g. flexure guidance) or active (e.g. using additional active axes).

A linear actuator.

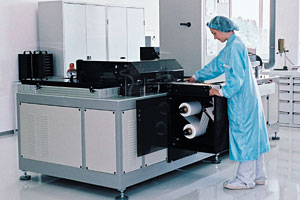

Equipment for fully automated screen printing of electrodes on piezoelectric and dielectric ceramics.

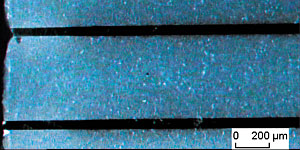

Piezoceramic layers in a "classical" stack actuator (HVPZT).

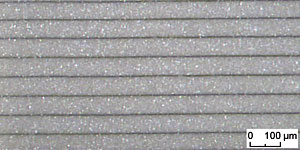

Piezoceramic layers in a monolithic actuator (LVPZT).

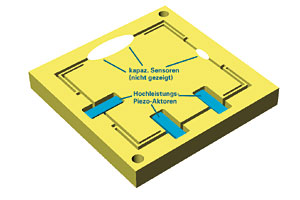

Nanopositioning system featuring parallel kinematics and parallel metrology.

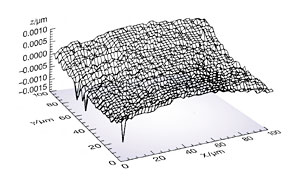

Flatness of a nanopositioning stage with active trajectory control is better than 1 nanometer over a 100 x 100 µm scanning range.

Design principle of a stacked XY piezo stage (serial kinematics).
to the top

Piezo Tutorial: Symbols and Units

A Surface area [m²] (meter²)
α Coefficient of Thermal Expansion (CTE) [K-¹] (1/kelvin)
C Capacitance (F) [A • s / V]
dij Piezo modulus (tensor components) [m/V] (meter/volt)
ds Distance, thickness [m] (meter)
Є Dielectric constant [A • s/V • m] (ampere · second / volt · meter)
E Electric field strength [V/m] (volt/meter)
f Operating frequency [Hz] (hertz = 1/second)
F Force [N] (newton)
f0 Unloaded resonant frequency [Hz] (hertz = 1/second)
g Acceleration due to gravity: 9.81 m/s² (meter/second2)
i Current [A] (ampere)
kS Stiffness of restraint (load) [N/m] (newton/meter)
kT Stiffness of piezo actuators [N/m] (newton/meter)
L0 Length of non-energized actuator [m] (meter)
∆L Change in length (displacement) [m]
∆L0 Nominal displacement with zero applied force, [m] (meter)
∆Lt=0.1 Displacement at time t = 0.1 sec after voltage change, [m] (meter)
m Mass [kg] (kilogram)
P Power [W] (watt)
Q Charge [C] (coulomb = ampere x second)
S Strain [iL/L] (dimensionless)
t Time [s] (second)
Tc Curie temperature [°C]
U Voltage [V] (volt)
Up-p Peak-to-peak voltage [V] (volt)

to the top


Nanopositioning with Piezoelectric Technology

The piezoelectric effects is often encountered in daily life, for example in lighters, loudspeakers and buzzers. In a gas lighter, pressure on a piezoceramic generates an electric potential high enough to create a spark. Most electronic alarm clocks do not use electronicmagnetic buzzers anymore, because piezoelectric ceramics are more compact and more efficient. In addition to such simple applications, piezo technology has recently established itself in the automotive branch. Piezo-driven injection valves in diesel engines require much lower transition times than conventional electromagnetic valves, providing quieter operation and lower emissions.

The term "piezo" is derived from the Greek word for pressure. In 1880 Jacques and Pierre Curie discovered that an electric potential could be generated by applying pressure to quartz crystals; they named this phenomenon the "piezo effect". Later they ascertained that when exposed to an electric potential, piezoelectric materials change shape. This they named the "inverse piezo effect". The first commercial applications of the inverse piezo effect were for sonar systems that were used in World War I. A break through was made in the 1940's when scientists discovered that barium titanate could be bestowed with piezoelectric properties by exposing it to an electric field.

Piezoelectric materials are used to convert electrical energy to mechanical energy and vice-versa. The precise motion that results when an electric potential is applied to a piezoelectric material is of primordial importance for nanopositioning. Actuators using the piezo effect have been commercially available for 35 years and in that time have transformed the world of precision positioning and motion control.
Features of Piezoelectric Actuators
  • Piezo actuators can perform sub-nanometer moves at high frequencies because they derive their motion from solid-state crystaline effects. They have no rotating or sliding parts to cause friction

  • Piezo actuators can move high loads, up to several tons

  • Piezo actuators present capacitive loads and dissipate virtually no power in static operation

  • Piezo actuators require no maintenance and are not subject to wear because they have no moving parts in the classical sense of the term

to the top

Quick Facts

Actuator Designs

This section gives a brief summary of the properties of piezoelectric drives and their applications. For detailed information, see “Fundamentals of Piezoelectricity”.

Stack actuators are the most common and can generate the highest forces. Units with travel ranges up to 500 µm are available. To protect the piezoceramic against destructive external conditions, they are often provided with a metal casing and an integrated preload spring to absorb tensile forces.

Piezo tube actuators exploit the radial contraction direction, and are often used in scanning microscopes and micropumps.

< Bender and bimorph actuators achieve travel ranges in the millimeter range (despite their compact size) but with relatively low force generation (a few newtons).

Shear elements use the inverse-piezo-effect shear component and achieve long travel and high force.

Guided piezo mechanisms (1 to 6 axes) are more complex nanopositioners with integrated piezo drives and solid-state, friction-free linkages (flexures). They are used when requirements like the following need be met:

  • Extremely straight and flat motion, or multi-axis motion with accuracy requirements in the sub-nanometer or sub-microradian range
  • Isolation of the actuator from external forces and torques, protection from humidity and foreign particles

    Such systems often also include lever amplification of up to 20 times the displacement of the piezo element, resulting in a travel range of several hundred µm.

    Piezomotors are used where even longer travel ranges are required. Piezomotors can be divided into two main categories:

  • Ultrasonic Motors (Fig. 2a)
  • Piezo-Walk® Motors (Fig. 2b)

The motion of ultrasonic piezomotors is based on the friction between parts oscillating with microscopic amplitudes. Linear ultrasonic motors are very compact and can attain high speeds combined with resolutions of 0.1 µm or better. Rotary motors feature high torques even at low rpm.

Piezo-Walk® linear drives offer high positioning and holding forces (up to hundreds of newtons) with moderate speeds and resolutions in the subnanometer range.

All implementations are self-locking when powered down.

Drawings & Images:
Fig. 1a. Selection of classical piezo stack actuators, with adhesive used to join the layers.
Fig. 1a. Selection of classical piezo stack actuators, with adhesive used to join the layers.

Fig. 1b. Selection of monolithic PICMA ®  technology actuators.
Fig. 1b. Selection of monolithic PICMA ® technology actuators.
